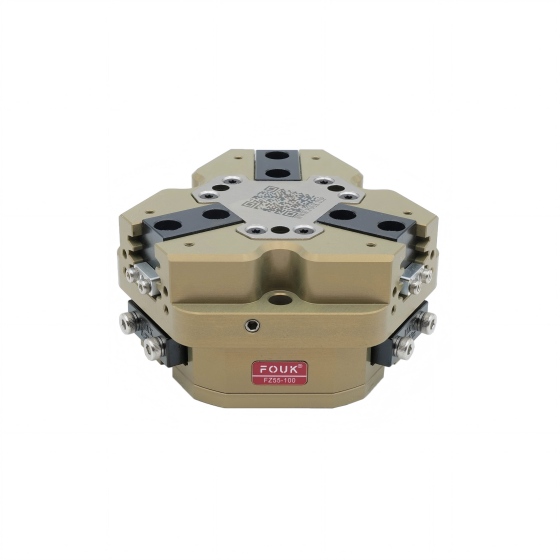

toothed three-finger gripper
FZ55-100-S
配置选项:
S: Short stroke
B: Ventilation at bottom
C30/C40: Length of push rod 29.5mm/39.5mm
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
Parameters and Specifications
| Product attributes | FZ55-100 | FZ55-100-NO | FZ55-100-NC | FZ55-100-S | FZ55-100-S-NO | FZ55-100-S-NC | Unit |
| Single stroke | 8 | 8 | 8 | 4 | 4 | 4 | mm |
| Product weight | 0.87 | 1 | 1 | 0.89 | 1.02 | 1.02 | kg |
| Maximum allowable gripping distance | 110 | 110 | 110 | 100 | 100 | 100 | mm |
| Theoretical maximum gripping force: opening/closing | 198P/172P | 198P/- | -/172P | 396P/344P | 396P/- | -/344P | N |
| Gas consumption of single opening and closing cycle | 0.295 | 0.419 | 0.419 | 0.295 | 0.419 | 0.419 | L |
| Minimum Spring Locking Force | 300 | 300 | 600 | 600 | N | ||
| Workpiece weight | 5 | 5 | 5 | 10 | 10 | 10 | kg |
| Opening/closing time | 0.05/0.05 | 0.04/0.06 | 0.05/0.03 | 0.05/0.05 | 0.04/0.06 | 0.05/0.03 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Maximum allowable single-finger gripping weight/kg | 0.6 | Specification of air connection port | M5 | ||||
| Repeated gripping accuracy/mm | ± 0.02 | Temperature range of application/°C | -5~60 | ||||
| Operating air pressure range/bar | 3~8 | IP rating | 40 | ||||
Download
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0823-L3 | inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0823-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
Products Description

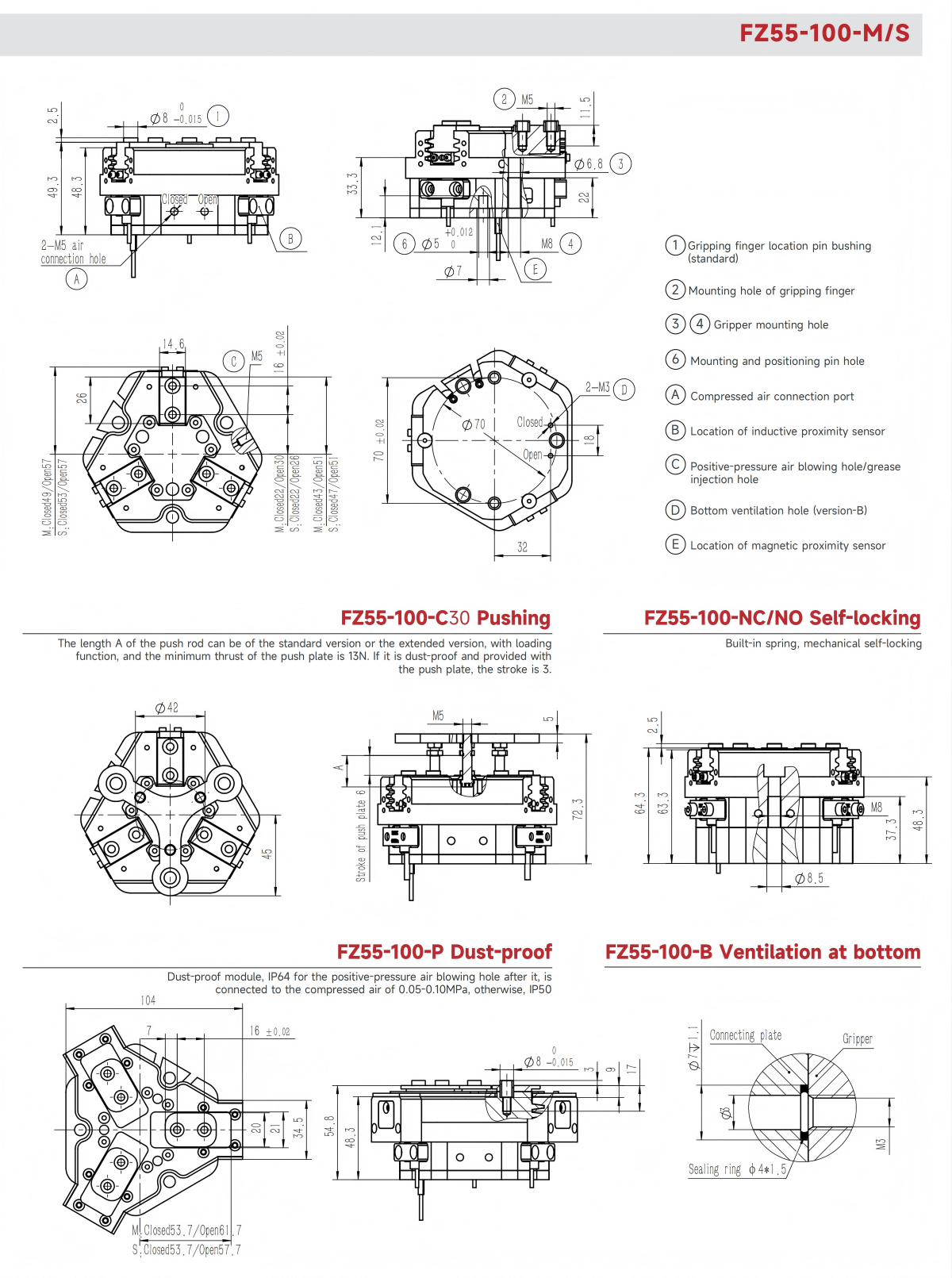

Engineering Graphics
